Agfa Ansco Box Camera
home     vintage cameras index

Photobucket - Video and Image Hosting

Photobucket - Video and Image Hosting
A lot of nice box cameras listed on ebay fail to find loving homes.

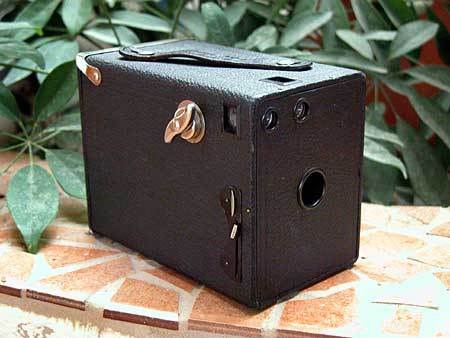

One has to hope they are humanely euthanized. I found this Agfa-Ansco box camera just as it was about to drop off the screen on ebay at less than $2.00.

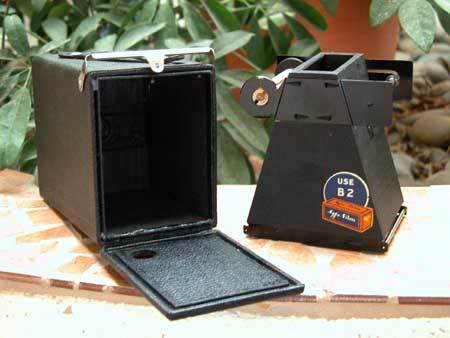

The last patent date inscribed on the camera was 1924; it hardly seems to have gotten any use since then. This is the first old camera I've found with a wooden return spool. The interior film-holding cone is also wood; it is very light and fine grained, possibly boxwood.

The front panel on the Agfa-Ansco is held on with brads, so I decided not to try removing it for cleaning of the shutter. Fortunately, the lens is behind the shutter, so I was able to go in with some lighter fluid on a brush through the front opening to clean the shutter mechanism.

Box cameras have their focus set to capture either closeups and middle distance features, or else scenic compositions. This one takes a broad view, with the closest sharp focus at about 15 feet. In practice at the time it was intended to be used, the issue was largely academic as most users would have gotten contact prints which would show about everything to be equally in sharp focus.

The camera is very tightly constructed. While the viewfinders on the top and side seem tiny, the lenses and mirrors are faultless and perfectly useable. The shutter has the usual Instant and Time release, and in this camera the shutter is actuated on both the up and down swing. I estimated the shutter speed at 1/30 sec. and used Adox 50 for the first roll. Development was in D-76 , 1:1 for 9 minutes.



Below are the results of the roll of film I put through the camera, probably the first to come out of it since the 1920's. They were made along the Rio Grande near my home and in the village of Doña Ana, north of Las Cruces, New Mexico.
