kiev-4 (type 1)

Produced: 1957-1959
Name: „Киев“
Producer: Arsenal
Frame size: 24x36
Lens: Jupiter-8M  2/50.
Shutter: 1-1/25s, 1/50s, 1/100s, 1/250s, 1/500s, 1/1250s + B.

Quantity: Unknown.

Camera opposite from Ilya Stolyar (USA) coll.

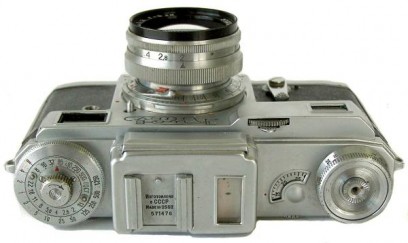

Kiev-4 (type-1)  #571478.

Although the prototype of Kiev-4 was introduced in early 1951 (source: DVD Technik), the earliest version of particular camera came into the market in 1957. All type-1 cameras have an unique feature - the lightmeter has no  edges of rigidity! The earliest cameras came with 5 or 6 digits serials and double markings "IZGATOVLENO B CCCP/ MADE IN USSR" on the accessory shoe. The latest ones have single markings "SDELANO B CCCP" engraved.

Kiev-4 (type-1)  #571478.

kiev-4 (type 2)

An ultra rare version of the particular camera with ukrainian engravings, instead of regular russian ones! The lightmeter still has no  edges of rigidity! "SDELANO B CCCP" engravings on the accessory shoe. Camera opposite from I.Stolyar (USA) coll.

Cameras known so far:

#586213 J-8M #5759219 (private coll.)
#586428 J-8M #xxxxxxx (private coll.)
#587342 J-8M #5806438 (I.Stolyar coll.)
#587467 J-8M #5807097 (A.Nikitin coll.)
#587591 J-8M #58xxxxx (DVD Technik)
#587665 J-8M #5807538 (A.Zilbert coll.)
#587873 J-8M #5807208 (U.Witte coll.)
#588785 J-8M #xxxxxxx (D.Ferraresi coll.)
#590132 J-8M #5xxxxxx (A.Berry coll.)
#5916313 J-8M #5xxxxx (DVD Technik).

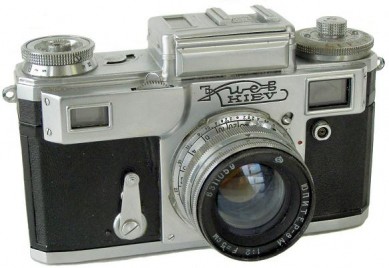

Kiev-4 (type-2)  #587342.

kiev-4 (type 3)

Produced: 1958-1974
Name: „Киев“
Producer: Arsenal
Frame size: 24x36
Lens: Jupiter-8M  2/50.
Shutter: 1-1/25s, 1/50s, 1/100s, 1/250s, 1/500s, 1/1250s + B.

Quantity: Unknown.

Thanks to Audrius Šaudys (Lithuania) for camera #6705069 donation.

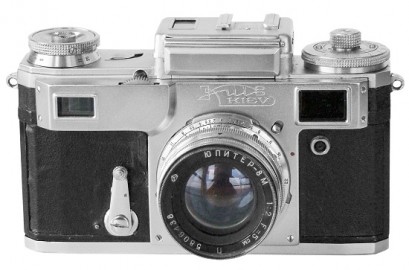

Kiev-4 (type 3)  #6305404.

Kiev-4 Anniversary

To commemorate the 50th Anniversary of Soviet Ukraine, Arsenal issued limited quantity of regular Kiev-4 cameras, with commemorative case. The particular case has metal plaque with markings "50 years to Soviet Ukraine". No otherwise different. Case opposite from Ilya Stolyar (USA) coll.

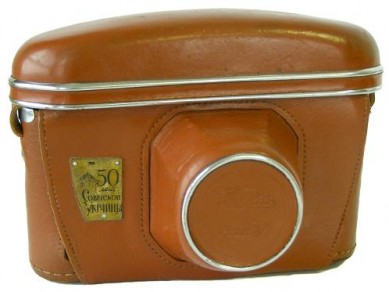

Commemorative case.

Produced: 1974-1980
Name: „Киев“
Producer: Arsenal
Frame size: 24x36
Lens: Jupiter-8M  2/50.
Shutter: 1/2s, 1/5s, 1/10s, 1/25s, 1/50s, 1/125s, 1/250s, 1/500s, 1/1000s + B.

Quantity: Unknown.

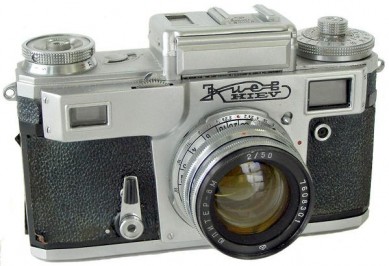

Kiev-4 (type 4)  #7601105.
